Discharge Headlight Control Module Removal/Installation

WARNING:
  • Incorrect servicing of the discharge headlights could result in electrical shock. Before servicing the discharge headlights, always refer to the service warnings. (Refer to DISCHARGE HEADLIGHT SERVICE WARNINGS .)
  1. Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the set plate. (Refer to SET PLATE REMOVAL/INSTALLATION .)
  3. Remove the front bumper. (Refer to FRONT BUMPER REMOVAL/INSTALLATION .)
  4. Remove the front combination light. (Refer to FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)
  5. Disconnect the connector.

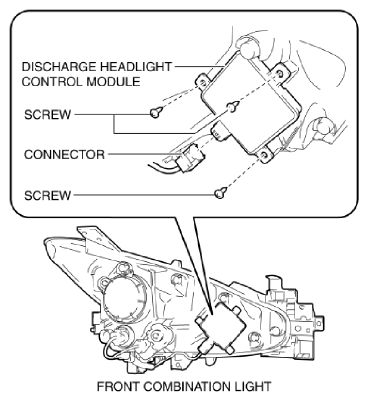

    Fig 1: Identifying Discharge Headlight Control Module Screws And Connector
    G10962760Courtesy of MAZDA MOTORS CORP.
  6. Remove the screws.
  7. Open the cover and insert the remover tool into the position shown in the figure.

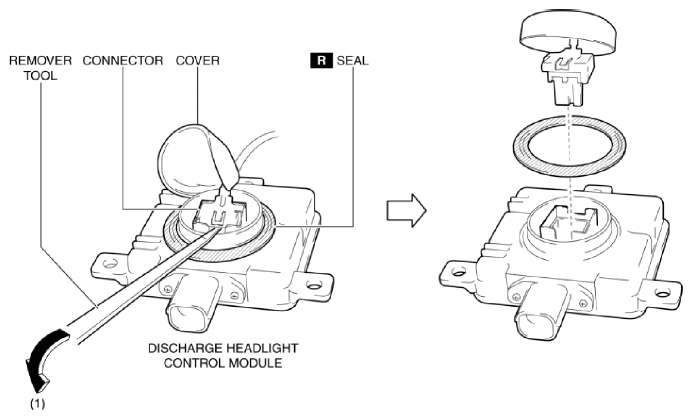

    Fig 2: Opening Discharge Headlight Control Module Cover Using Remover Tool
    G10962761Courtesy of MAZDA MOTORS CORP.
  8. Move the remover tool in the direction of arrow (1) shown in the figure and lift up the connector to disengage it from the discharge headlight control module.
  9. Disconnect the connector and remove the discharge headlight control module.
  10. Remove the seal.
  11. Install in the reverse order of removal.
