| System malfunction location |
Radar sensor internal circuit malfunction |
| Detection condition |
- Radar sensor internal circuit malfunction
|
| Fail-safe |
- Inhibits the Mazda radar cruise control (MRCC) system control
- Inhibits the forward obstruction warning (FOW) system control
|
| Possible cause |
- Generator system malfunction
- Battery malfunction
- C/U IG1 15 A fuse malfunction

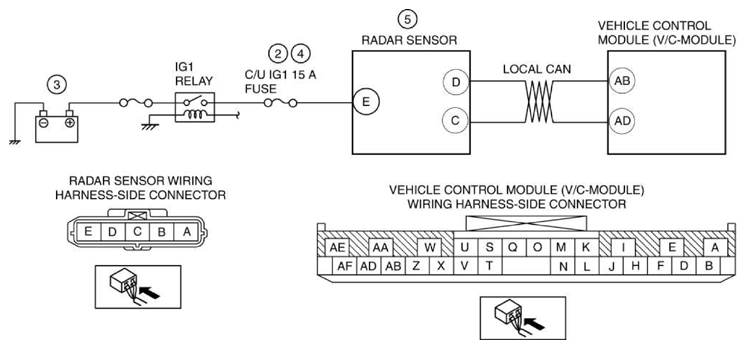

- Open circuit or short to ground in wiring harness between battery positive terminal and radar sensor
- Radar sensor malfunction
- Vehicle control module (V/C-module) malfunction
|
|
|
