Symptom Troubleshooting [Vehicle Control Module]
›
Foreword
›
Troubleshooting Procedure
Troubleshooting Procedure

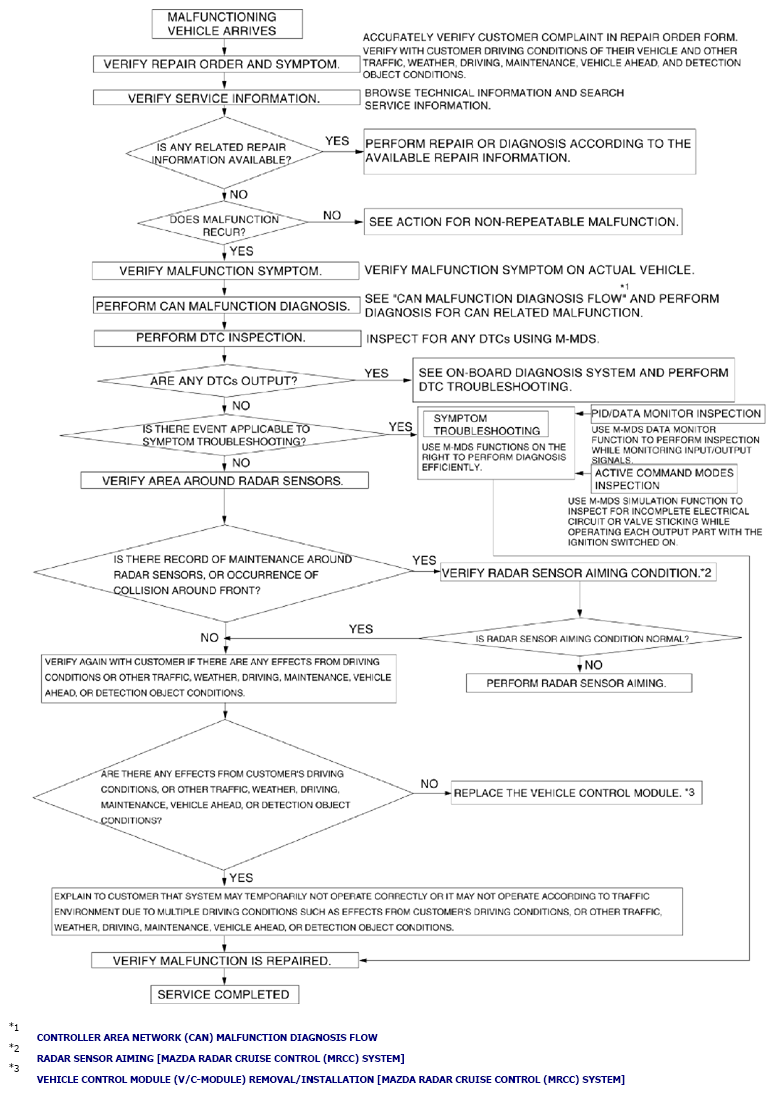

Fig 1: Vehicle Control Module Troubleshooting Procedure Flowchart
Courtesy of MAZDA MOTORS CORP.
