LF Control Unit Inspection
›
Inspection Using an Oscilloscope (Reference)
›
Pattern 1
Pattern 1

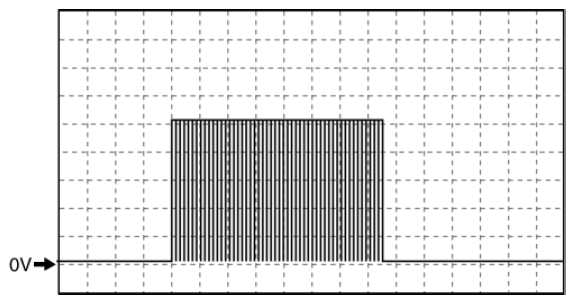

Fig 1: LF Control Unit Oscilloscope Graph
Courtesy of MAZDA MOTORS CORP.
LF control unit: H (+) ↔ body ground (-)
Oscilloscope setting: 2 V/DIV (Y), 100 ms/DIV (X), DC range
Courtesy of MAZDA MOTORS CORP.
