BSM Indicator Light Inspection

Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the following parts:
1. Front door trim (Refer to FRONT DOOR TRIM REMOVAL/INSTALLATION .)
2. Outer mirror glass (Refer to OUTER MIRROR GLASS REMOVAL .) (Refer to OUTER MIRROR GLASS INSTALLATION .)
Verify that the continuity between BSM indicator light connector terminals is as indicated in the table.

Fig 1: BSM Indicator Light Connector Terminals Continuity Chart
Courtesy of MAZDA MOTORS CORP.

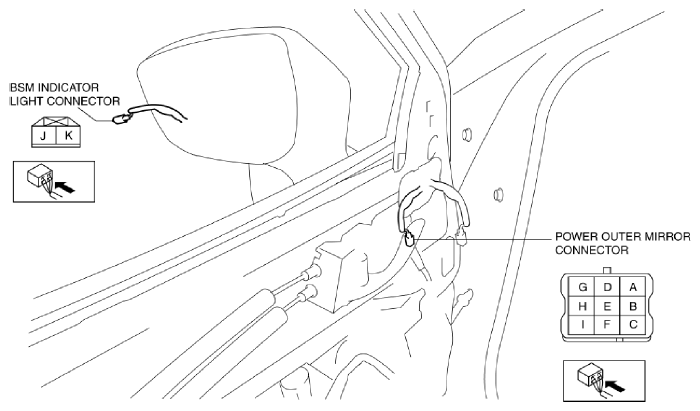

Fig 2: Identifying BSM Indicator Light Connector Terminals
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the power outer mirror. (Refer to POWER OUTER MIRROR REMOVAL/INSTALLATION .)
