Symptom Troubleshooting - Power Window System
›
Power Window System Wiring Diagram
Power Window System Wiring Diagram

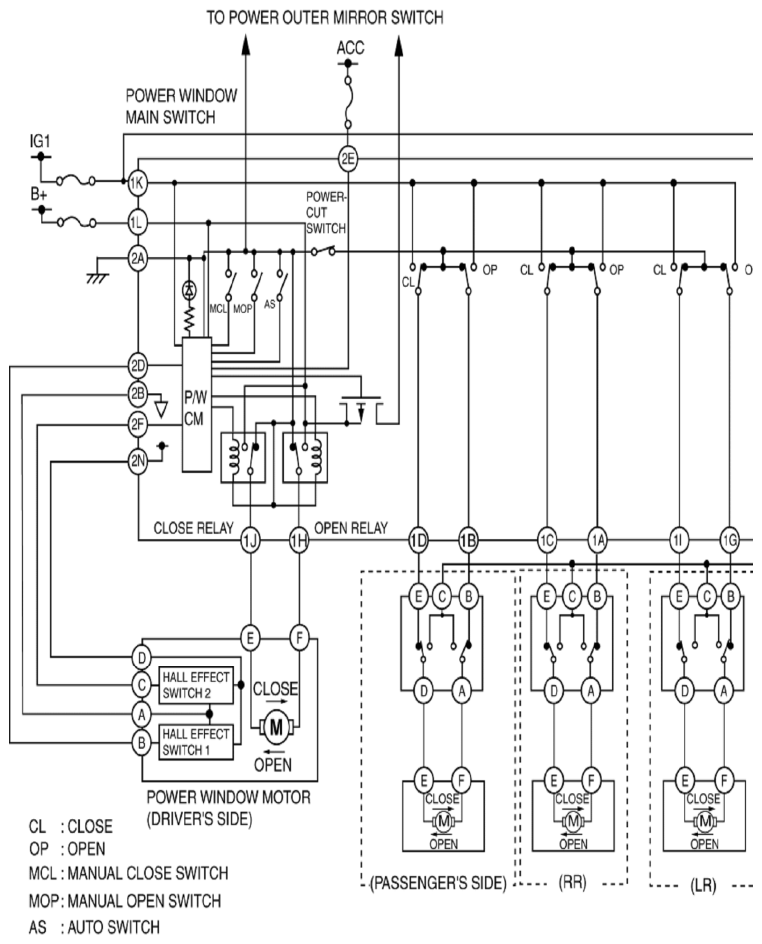

Fig 1: Power Window System Wiring Diagram
