Replacing Combiner

Refer to ACTIVE DRIVING DISPLAY INSPECTION and stop the combiner at an angle of 10 degrees. (Refer to ACTIVE DRIVING DISPLAY INSPECTION .)
Switch the ignition off.
Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the following parts:
1. Upper column cover (Refer to COLUMN COVER REMOVAL/INSTALLATION .)
2. Meter hood (Refer to METER HOOD REMOVAL/INSTALLATION .)
3. Instrument cluster (Refer to INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)

Remove the combiner in the following order:

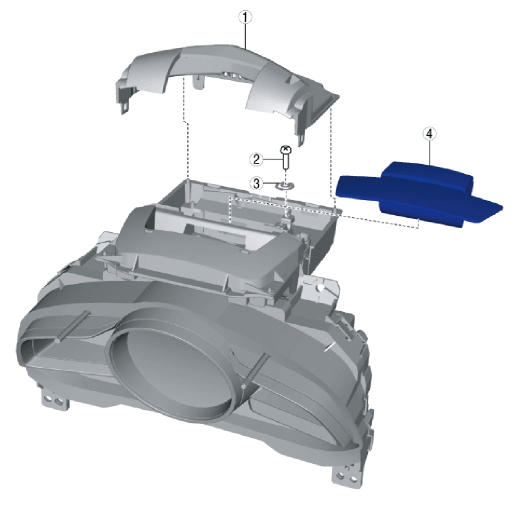

Fig 1: Removing Combiner

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Cover
2	Screw
3	Spring
4	Combiner (See Combiner assembly note .)
