Ventilation Hose Installation Note
Install the ventilation hose as shown in the figure.

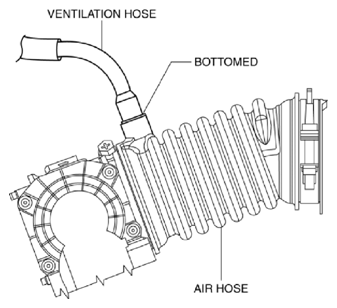

Fig 1: Installing Ventilation Hose (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

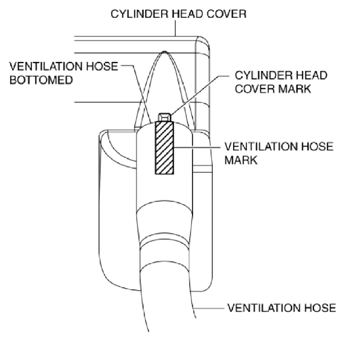

Fig 2: Installing Ventilation Hose (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
