KS Installation Note (SKYACTIV-G 2.5)

Verify that there is no foreign matter caught between the KS unit and cylinder block.

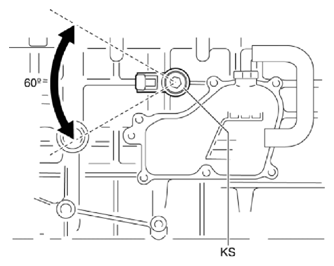

The direction of the KS connector is within the 60-degree angle range shown in the article.

Fig 1: Identifying KS Connector Directional Angle Range (SKYACTIV-G 2.5)
Courtesy of MAZDA
