CKP signal

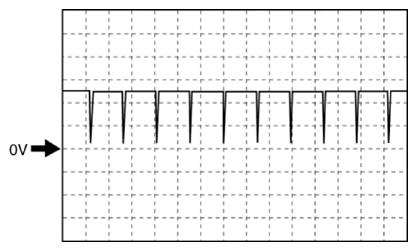

Fig 1: CKP Signal Oscilloscope Graph

Courtesy of MAZDA

PCM terminals

• 1AD(+)-body ground(-)

  Oscilloscope setting

• 2 V/DIV (Y), 1 ms/DIV (X), DC range

  Vehicle condition

• Idle (after warm up)
