Drive-by-wire control (+) signal

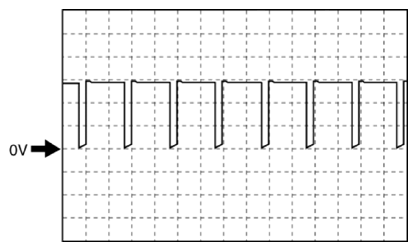

Fig 1: Drive-By-Wire Control (+) Signal Oscilloscope Graph

Courtesy of MAZDA

PCM terminals

• 1CG(+)-body ground(-)

  Oscilloscope setting

• 5 V/DIV (Y), 1 ms/DIV (X), DC range

  Vehicle condition

• Idle after warm up
