Pcm Inspection
›
Inspection Using An Oscilloscope (Reference)
›
Generator field coil control signal
Generator field coil control signal

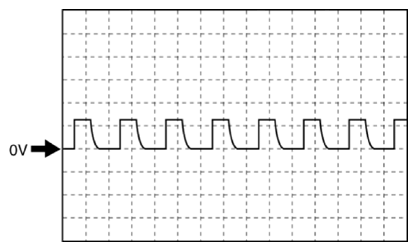

Fig 1: Generator Field Coil Control Signal Oscilloscope Graph
Courtesy of MAZDA
PCM terminals
1BE(+)-body ground(-)
1BR(+)-body ground(-)
Oscilloscope setting
1 V/DIV (Y), 2 ms/DIV (X), DC range
Vehicle condition
Idle after warm up
