Intake CMP signal

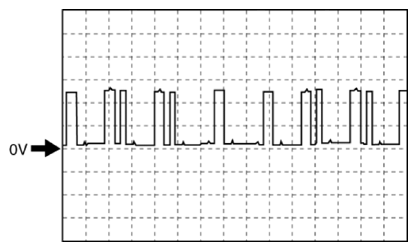

Fig 1: Intake CMP Signal Oscilloscope Graph

Courtesy of MAZDA

PCM terminals

• 1Y(+)-body ground(-)

  Oscilloscope setting

• 2 V/DIV (Y), 20 ms/DIV (X), DC range

  Vehicle condition

• Idle (after warm up)
