PCM Cover Installation Note

  1. Insert the PCM cover end into area A shown in the article.

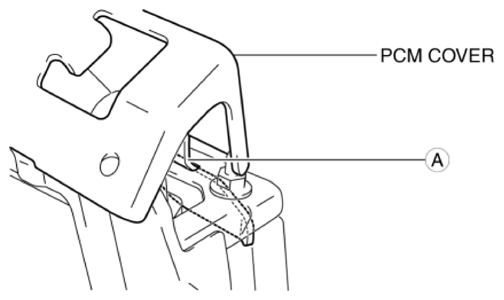

    Fig 1: Identifying PCM Cover Installation Location
    G10960276Courtesy of MAZDA
  2. Temporarily tighten the two bolts, then completely tighten them.
