Evaporative Hose Installation Note

  1. Install the evaporative hose as shown in the figure.

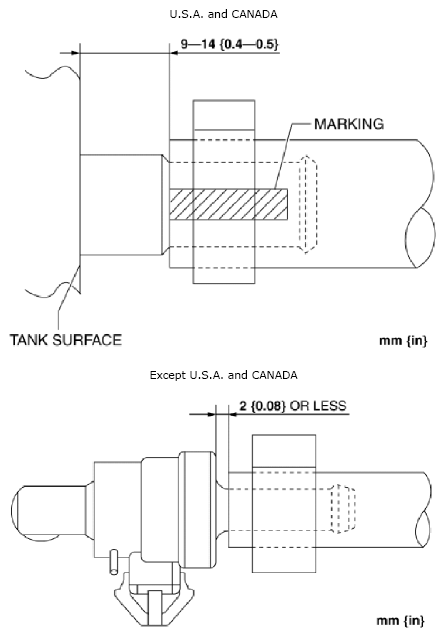

    Fig 1: Identifying Evaporative Hose Dimension
    G10960010Courtesy of MAZDA MOTORS CORP.
