Dust Cover Removal Note

Remove the rear mudguard (LH). (Refer to MUDGUARD REMOVAL/INSTALLATION .)
Release the dust cover tab using a flathead screwdriver as shown in the figure.

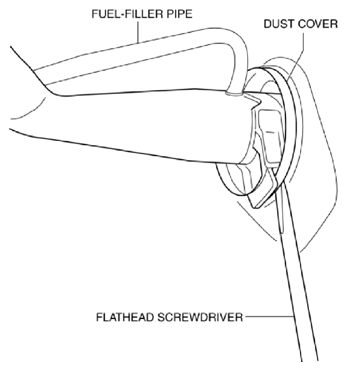

Fig 1: Releasing Dust Cover Tab Using Flathead Screwdriver
Courtesy of MAZDA MOTORS CORP.
Remove the dust cover.
