Joint Hose Installation Note

  1. Install the joint hose as shown in the figure.

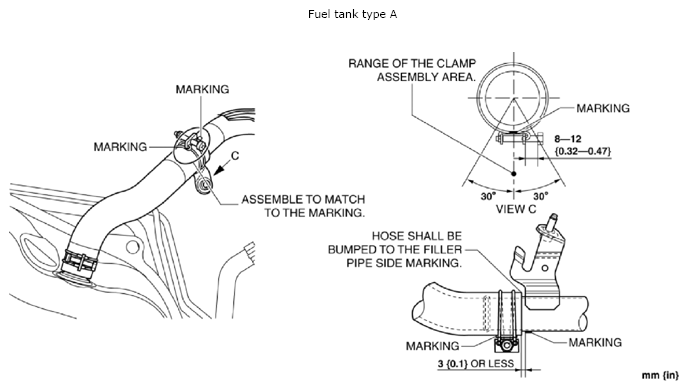

    Fig 1: Installing Joint Hose (1 Of 2)
    G10960035Courtesy of MAZDA MOTORS CORP.

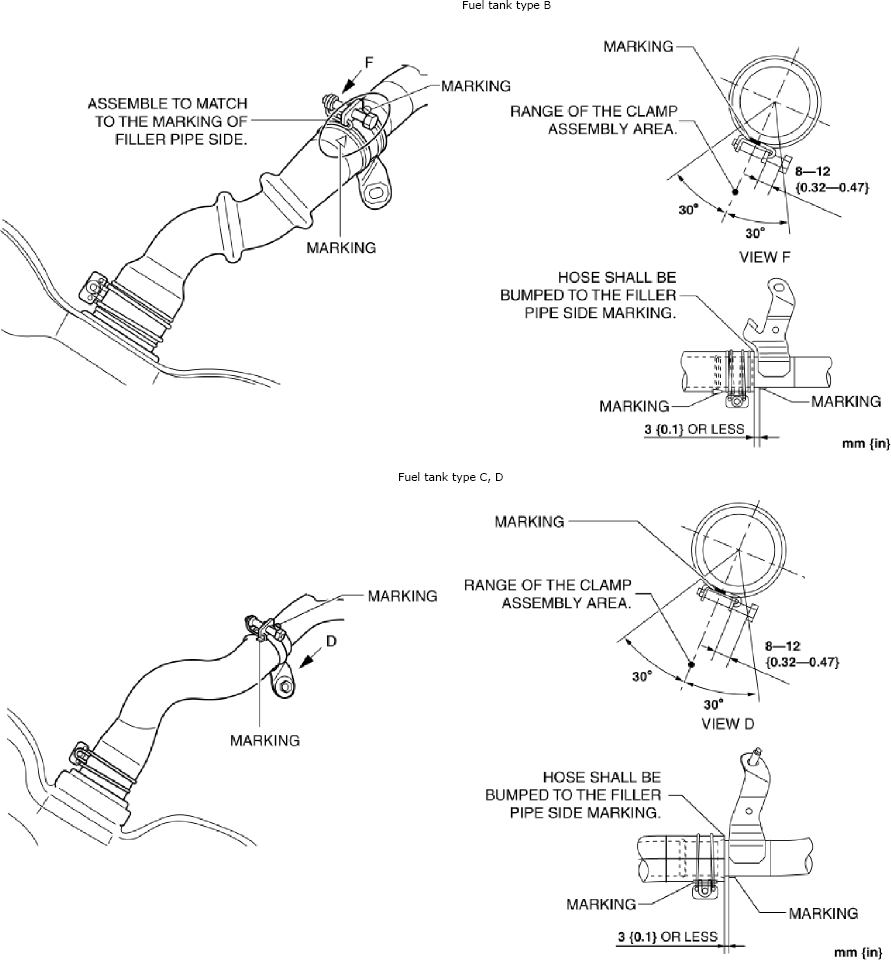

    Fig 2: Installing Joint Hose (2 Of 2)
    G10960036Courtesy of MAZDA MOTORS CORP.
