DTC U0323-00: Instrument Cluster Error: Notes

DTC U0323:00	Instrument cluster error
DETECTION CONDITION	When any of the following conditions is met: CAN communication line malfunction between instrument cluster and PCM Instrument cluster internal malfunction Diagnostic support note This is a continuous monitor (other). The check engine light does not illuminate. FREEZE FRAME DATA (Mode 2) is not available. Snapshot data is available. DTC is stored in the PCM memory.
FAIL-SAFE FUNCTION	Not applicable

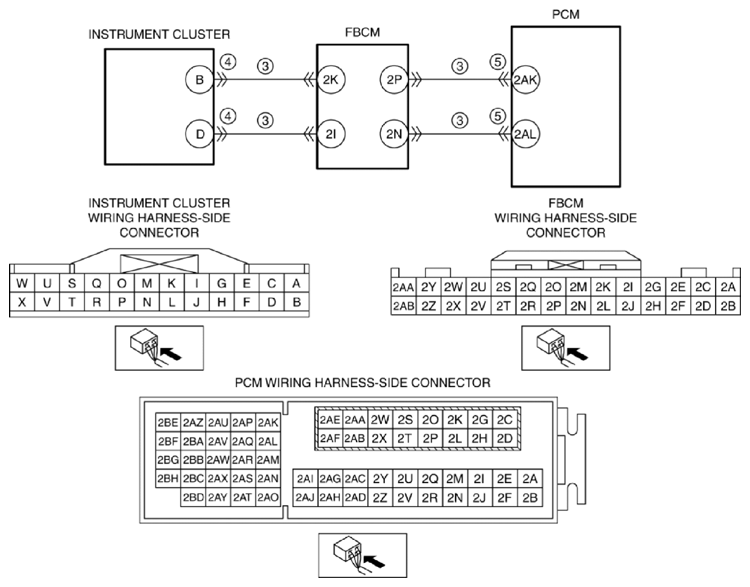

POSSIBLE CAUSE	CAN drive error (instrument cluster or PCM) CAN communication line malfunction between instrument cluster and PCM Instrument cluster terminal B-Front body control module (FBCM) terminal 2K Instrument cluster terminal D-Front body control module (FBCM) terminal 2I Front body control module (FBCM) terminal 2P-PCM terminal 2AK Front body control module (FBCM) terminal 2N-PCM terminal 2AL Instrument cluster connector or terminals malfunction PCM connector or terminals malfunction Instrument cluster malfunction PCM malfunction
