Mazda
›
2016
›
3 Sport, 4D Hatchback, Automatic Trans
›
Repair and Diagnosis
›
Transmission
›
Transmission Control Systems
›
On-Board Diagnostics - Transmission Control System
›
On-Board Diagnostic System Wiring Diagram
On-Board Diagnostic System Wiring Diagram

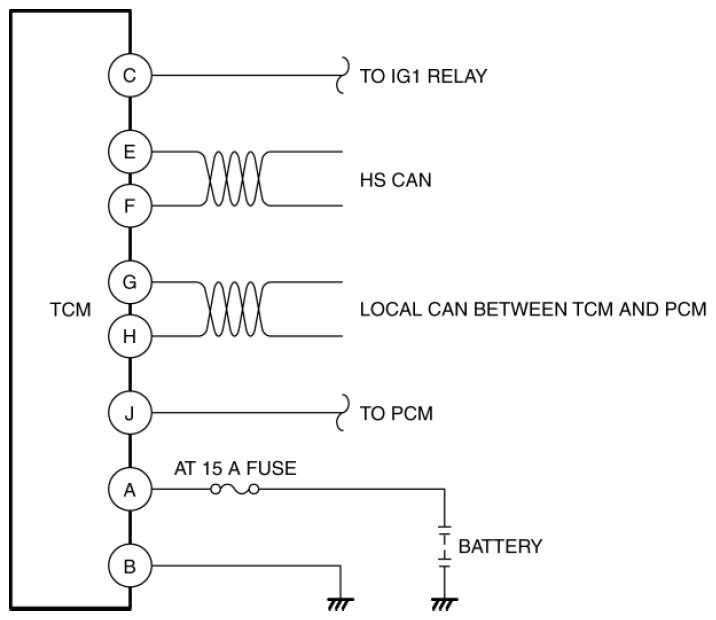

Fig 1: FW 6A-EL On Board Diagnostic System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
