Generator Disassembly/Assembly: Notes

Assemble in the reverse order of disassembly.

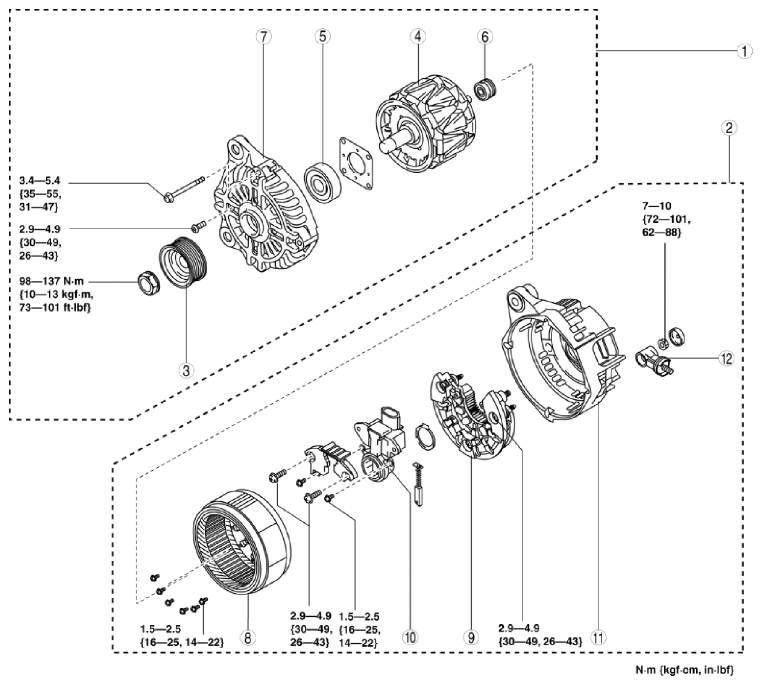

Fig 1: Generator Assembly Exploded View

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Rotor component
2	Stator coil component
3	Pulley
4	Rotor
5	Front bearing
6	Rear bearing
7	Front cover
8	Stator coil (See STATOR COIL DISASSEMBLY/ASSEMBLY NOTE .)
9	Rectifier
10	Regulator component
11	Rear cover
