Connector Installation Note

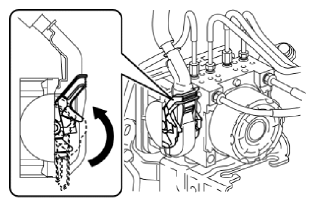

Connect the connector and pull the lock lever up in the direction of the arrow.

Fig 1: Pulling Brake Pipe Lock Lever
Courtesy of MAZDA MOTORS CORP.
After connecting the connector, verify that the connector cover is completely pushed in.
