Rain Sensor Removal/Installation: Notes

Disconnect the negative battery cable.

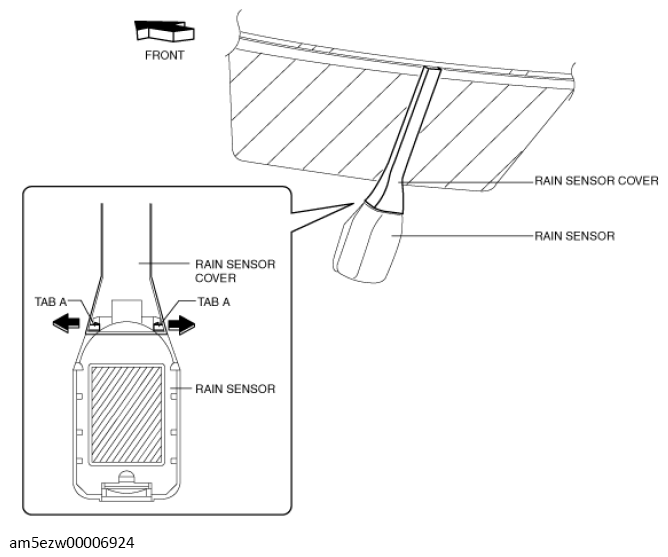

Open the rain sensor cover in the direction of the arrow and remove it while releasing rain sensor cover tab A.

Courtesy of MAZDA MOTORS CORP.

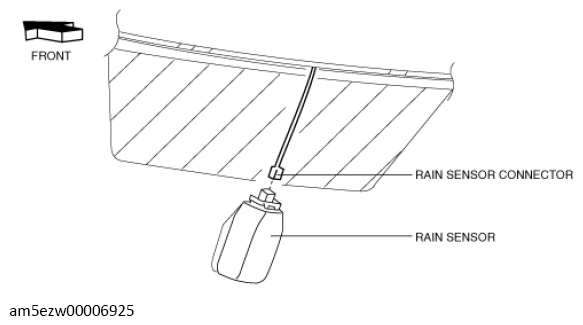

Disconnect the rain sensor connector.

Courtesy of MAZDA MOTORS CORP.

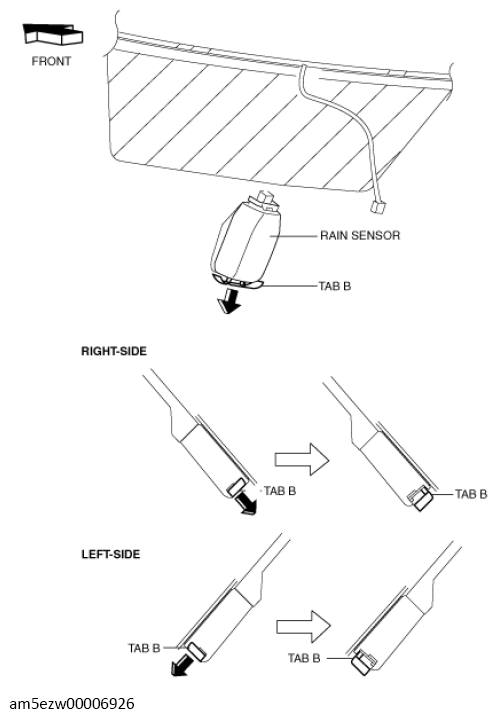

Slide rain sensor tab B in the direction of the arrow shown in the figure and detach tab B.

Courtesy of MAZDA MOTORS CORP.

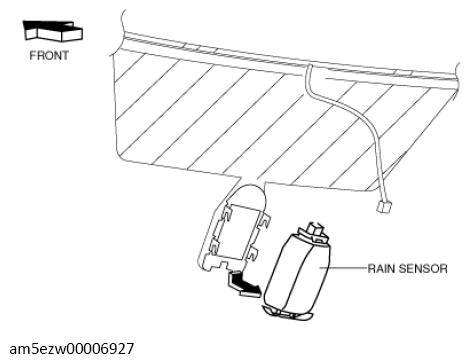

Remove the rain sensor in the direction of the arrow shown in the figure.

Courtesy of MAZDA MOTORS CORP.
Peel off the rain sensor protective sheet from the rain sensor.

Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal. (See RAIN SENSOR INSTALLATION NOTE .)
