Washer Tank Removal/Installation: Notes

Remove in the order indicated in the table.

Vehicles with the washer fluid-level sensor

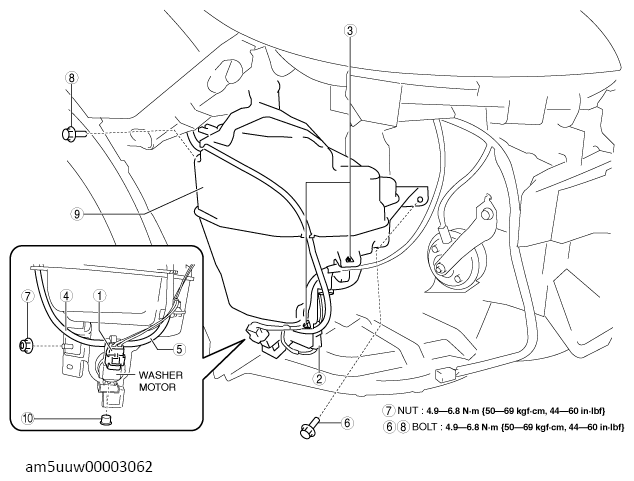

Fig 1: Washer Tank Components With Torque Specification (Vehicles With Washer Fluid-Level Sensor)

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	Washer motor connector
2	Washer fluid-level sensor connector
3	Clip
4	Windshield washer hose
5	Rear washer hose
6	Bolt A
7	Nut
8	Bolt B
9	Washer tank
10	Cap (See CAP INSTALLATION NOTE .)

Vehicles without the washer fluid-level sensor

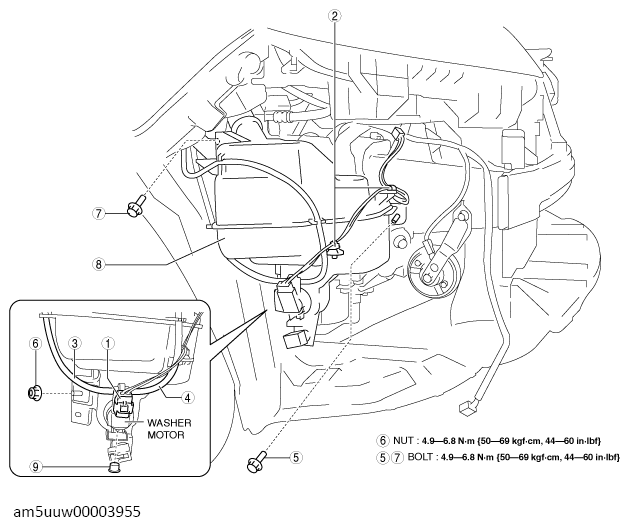

Fig 2: Washer Tank Components With Torque Specification (Vehicles Without Washer Fluid-Level Sensor)

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	Washer motor connector
2	Clip
3	Windshield washer hose
4	Rear washer hose
5	Bolt A
6	Nut
7	Bolt B
8	Washer tank
9	Cap (See CAP INSTALLATION NOTE .)
