Windshield Wiper Motor Assembly Note
- Connect the windshield wiper motor to the vehicle wiring harness connector, operate the windshield wipers, and then stop them at the auto-stop position.

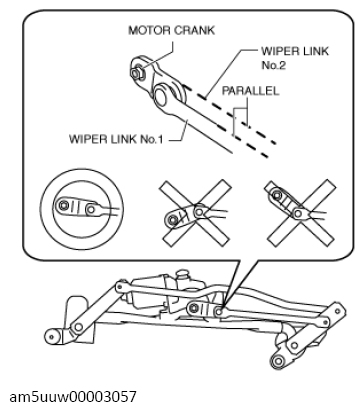

- Adjust the motor crank, wiper link No. 1, and wiper link No. 2 so that they are parallel as shown in the figure.
- Assemble the windshield wiper motor.
