Liftgate Lock Striker Removal/Installation

  1. Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION .)
  2. Remove the bolts, then remove the liftgate lock striker.

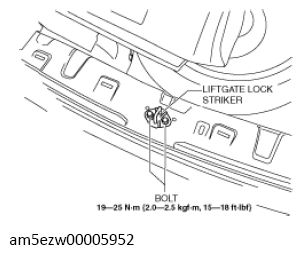

    Fig 1: Liftgate Lock Striker Bolts With Torque Specification
    G13728247Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
  4. Adjust the liftgate lock striker. (See LIFTGATE ADJUSTMENT .)
