Front Door Module Panel Removal/Installation

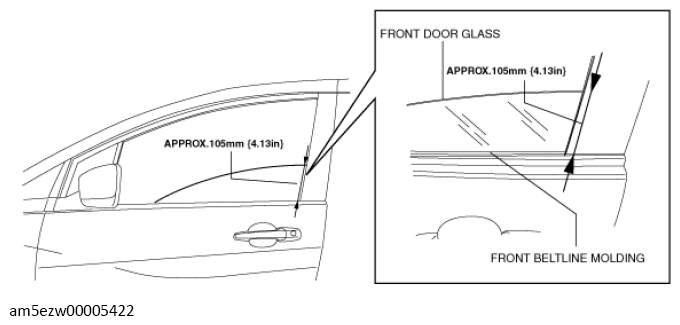

  1. To access the glass installation bolt, position the front door glass so that the distance from the top of the front door glass to the upper part of the front beltline molding is approx. 105 mm {4.13 in}.
    G13727902Courtesy of MAZDA MOTORS CORP.
  2. Disconnect the negative battery cable.
  3. Remove the following parts:
    1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
    2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
    3. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
    4. Pressure sensor (See PRESSURE SENSOR REMOVAL/INSTALLATION .)
    5. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
  4. Disconnect the power outer mirror connector. (See POWER OUTER MIRROR REMOVAL/INSTALLATION .)
  5. Disconnect the front door wiring harness connector. (See FRONT DOOR REMOVAL/INSTALLATION .)
  6. Release the tabs and remove the front door harness bracket.

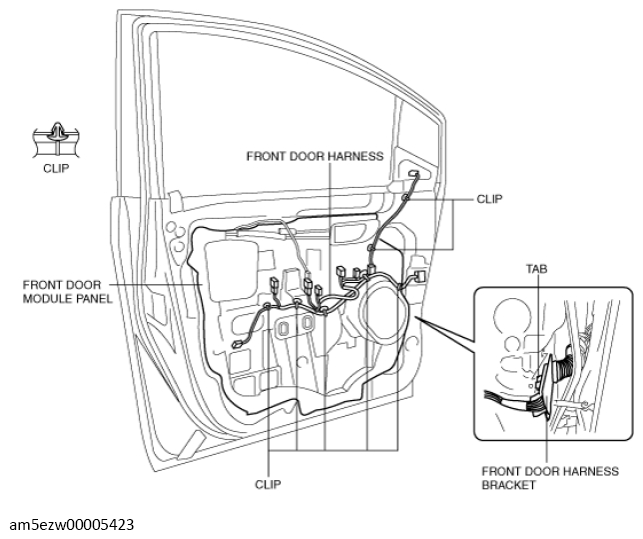

    G13727903Courtesy of MAZDA MOTORS CORP.
  7. Remove the clips securing the front door wiring harness from the front door module panel.
  8. Remove the fastener.

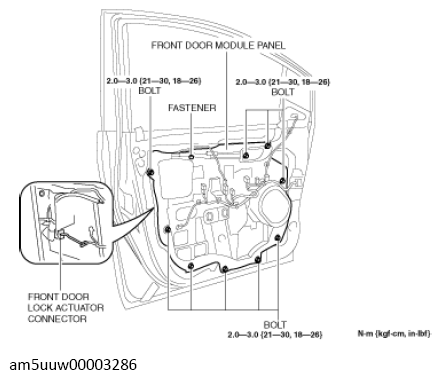

    Fig 1: Front Door Module Panel Bolts With Torque Specification
    G13727904Courtesy of MAZDA MOTORS CORP.
  9. Remove the bolts.
  10. Pull the front door module panel outward.
  11. Disconnect the front door lock actuator connector.
  12. Remove the front door module panel.
  13. Install in the reverse order of removal.
