Starter Installation Note

NOTE:

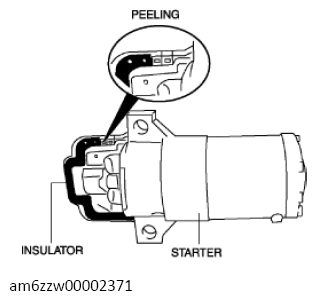

If the insulator is peeling or damaged, attach a new insulator using the following procedure:

G13726858

Courtesy of MAZDA MOTORS CORP.

Peel off the insulator from the starter completely using a scraper.
Degrease the insulator attachment area.

Courtesy of MAZDA MOTORS CORP.
Attach a new insulator to the starter.

G13726860

Courtesy of MAZDA MOTORS CORP.
