Mazda
›
2016
›
5 GT, Automatic Trans
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›

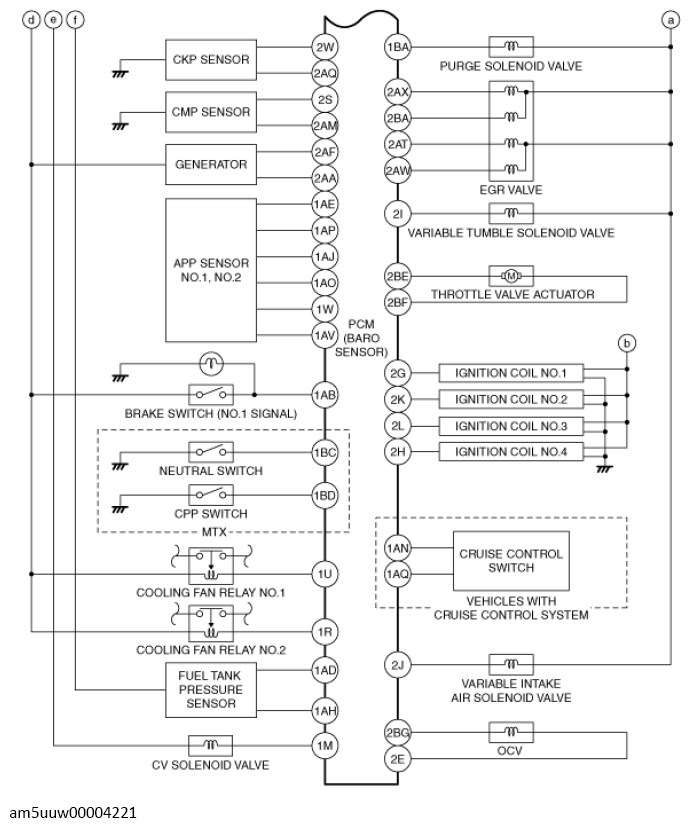

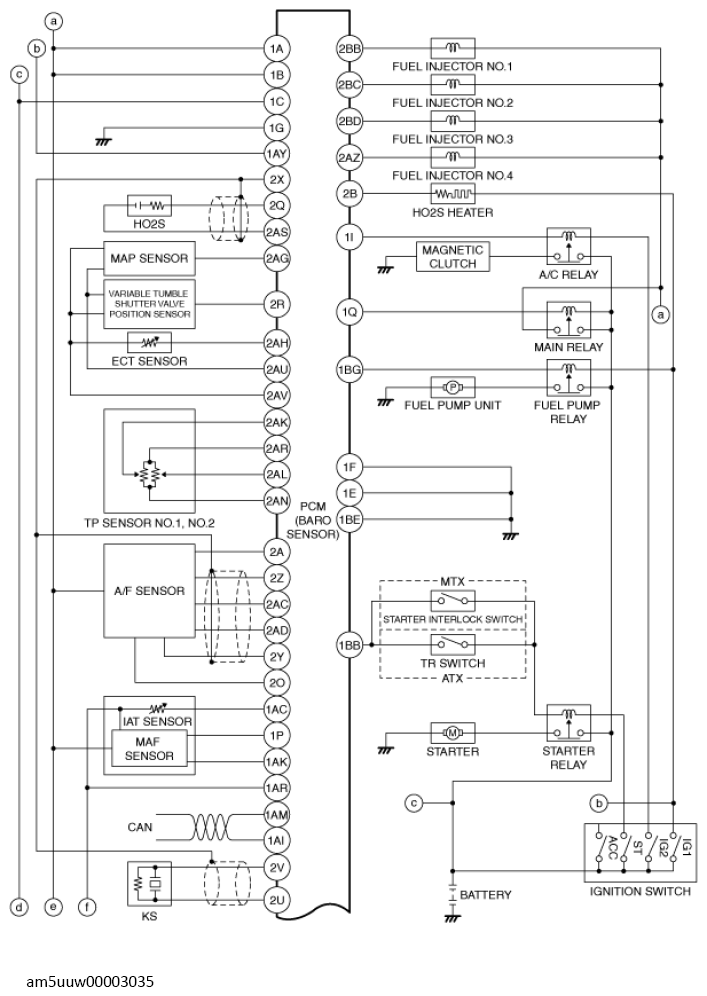

Control System Wiring Diagram
Control System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
