Back-Up Light Bulb Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the trunk lid recess. (Back-up light bulb (RH)) (See TRUNK LID RECESS REMOVAL/INSTALLATION .)
  3. Partially peel back the trunk lid trim. (See TRUNK LID TRIM REMOVAL/INSTALLATION .)

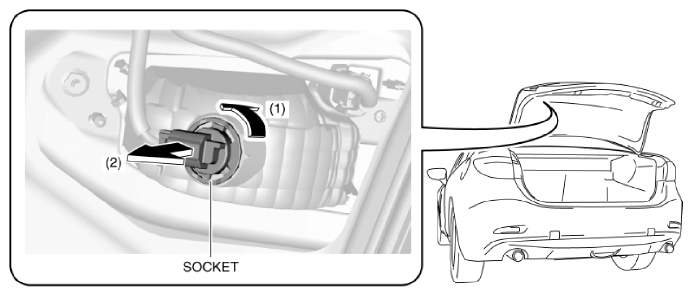

  4. Rotate the socket in the direction of the arrow (1) shown in the figure and remove it from the trunk lid light in the direction of the arrow (2) shown in the figure.
    Fig 1: Rotating Socket
    G10987965Courtesy of MAZDA MOTORS CORP.
  5. Remove the back-up light bulb.
    Fig 2: Removing Back-Up Light Bulb
    G10987966Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
