Front Fog Light Removal/Installation

Turn the steering wheel to the side where the fog light is to be removed until it locks.
Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the front splash shield No. 2. (See SPLASH SHIELD REMOVAL/INSTALLATION .)
Partially peel back the mudguard. (See MUDGUARD REMOVAL/INSTALLATION .)
Disconnect the connector.

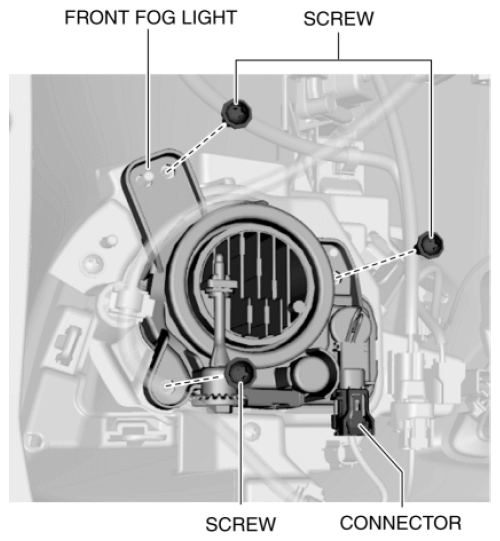

Fig 1: Disconnecting Connector
Courtesy of MAZDA MOTORS CORP.
Remove the screws.
Remove the front fog light.

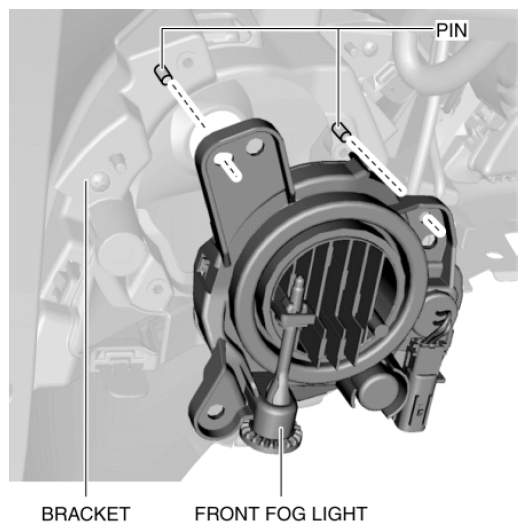

Fig 2: Removing Front Fog Light
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Adjust the front fog light aiming. (See FRONT FOG LIGHT AIMING .)
