Hazard Warning Switch Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
    2. Meter hood (See METER HOOD REMOVAL/INSTALLATION .)
    3. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    4. Decoration panel (passenger-side) (See DECORATION PANEL REMOVAL/INSTALLATION .)

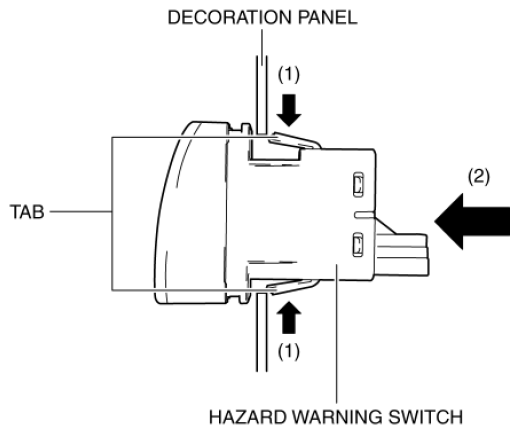

  3. While pressing the hazard warning switch tabs in the direction of the arrows (1) shown in the figure, press the hazard warning switch in the direction of the arrow (2) shown in the figure to detach the hazard warning switch tabs from the decoration panel (passenger-side).
    Fig 1: Pressing Hazard Warning Switch Tabs
    G10988019Courtesy of MAZDA MOTORS CORP.
  4. Remove the hazard warning switch.

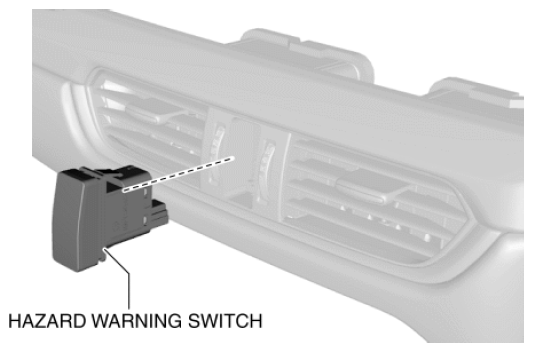

    Fig 2: Removing Hazard Warning Switch
    G10988020Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
