Light Switch
- Remove the light switch. (See LIGHT SWITCH REMOVAL/INSTALLATION .)

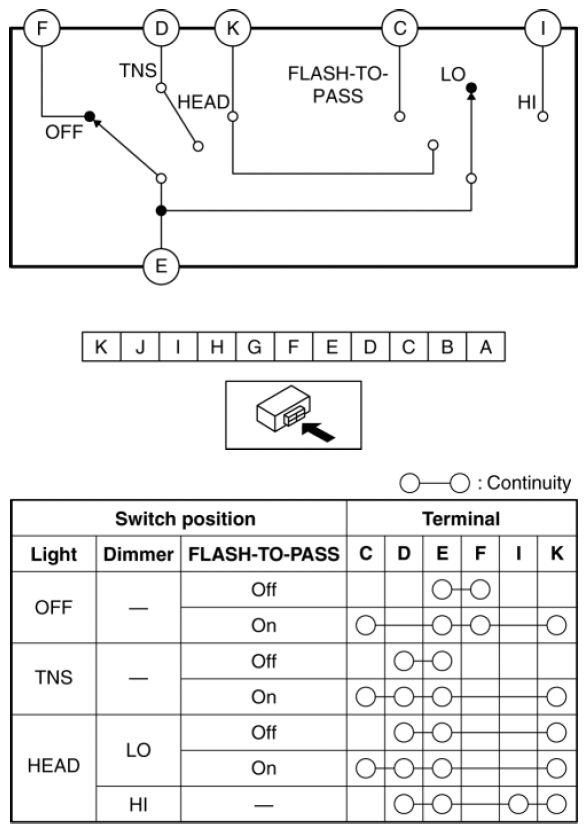

- Verify that the continuity between the light switch terminals is as indicated in the table.
With auto light system
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the light switch. (See LIGHT SWITCH REMOVAL/INSTALLATION .)
