Turn Switch

Remove the light switch. (See LIGHT SWITCH REMOVAL/INSTALLATION .)
Verify that the continuity between the light switch terminals is as indicated in the table.

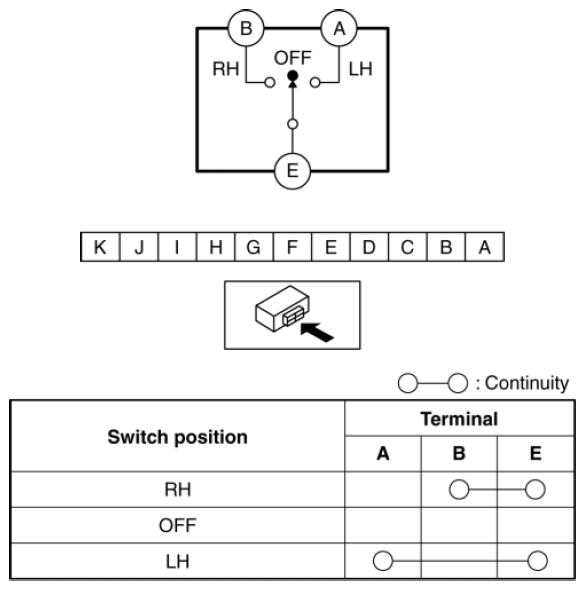

Fig 1: Light Switch Connector Terminals Continuity Chart
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the light switch. (See LIGHT SWITCH REMOVAL/INSTALLATION .)
