DRL System (Except canada specs.)
| Function | Initial setting | Setting contents | Control module |
|---|---|---|---|
| The DRL system function can be set. | On (DRL illumination) | Off (DRL non-illumination)/On (DRL illumination) | Front body control module (FBCM) |
- There are two methods for personalizing the DRL system: One using the center display (with center display) and the other using the light switch. Refer to the following and perform the setting.
Using center display
- CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE

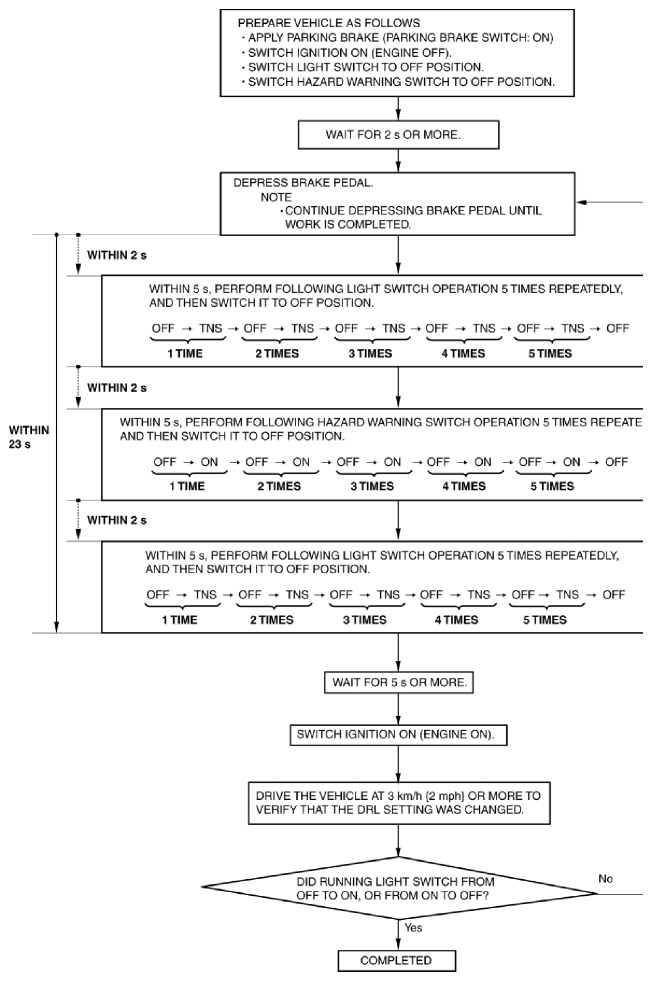

Using light switch
- Perform the following procedure to change the DRL illumination/non-illumination setting.NOTE:
- Because each procedure needs to be completed within a predetermined period of time, refer to the following procedure before performing the set up work, and then verify the content of the work and the time limit.
