Heated Outer Mirror Inspection

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
2. Remove the following parts:
   1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
   2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
   3. Power outer mirror (See POWER OUTER MIRROR REMOVAL/INSTALLATION .)
   4. Outer mirror glass (See OUTER MIRROR GLASS REMOVAL .) (See OUTER MIRROR GLASS INSTALLATION .)
3. Verify that the continuity between heated outer mirror connector terminals is as indicated in the table.

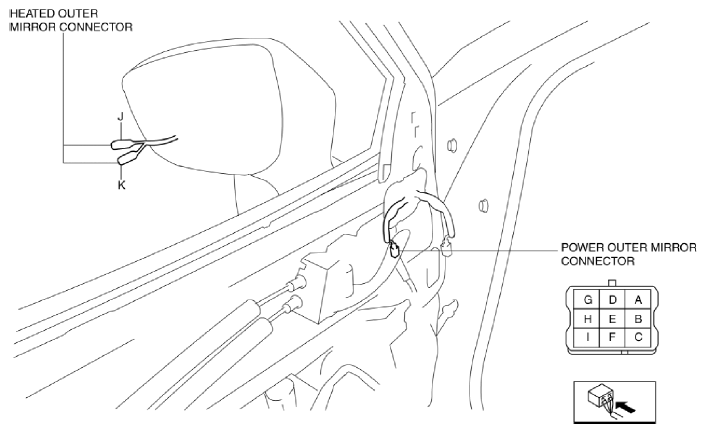

   Fig 1: Identifying Heated Outer Mirror And Power Outer Mirror Connectors

   Courtesy of MAZDA MOTORS CORP.
   • If not as indicated in the table, replace the power outer mirror. (See POWER OUTER MIRROR REMOVAL/INSTALLATION .)

Fig 2: Power Outer Mirror Terminal Continuity Chart

Courtesy of MAZDA MOTORS CORP.
