Replacing Active Driving Display as Single Component

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
  2. Remove the following parts:
    1. Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
    2. Meter hood (See METER HOOD REMOVAL/INSTALLATION .)
    3. Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
  3. Remove the screws.

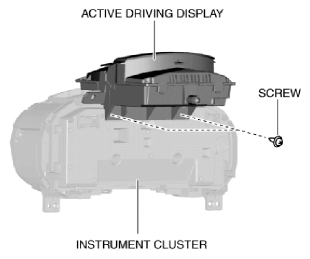

    Fig 1: Identifying Instrument Cluster And Active Driving Display Screw
    G10988385Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • Always use the provided tool to disconnect the wiring harness. Otherwise, it could damage the board in the instrument cluster or cause a malfunction.
  4. Insert the tool into the position shown in the figure, pull the wiring harness in the direction of the arrow, and disconnect the wiring harness from the instrument cluster.

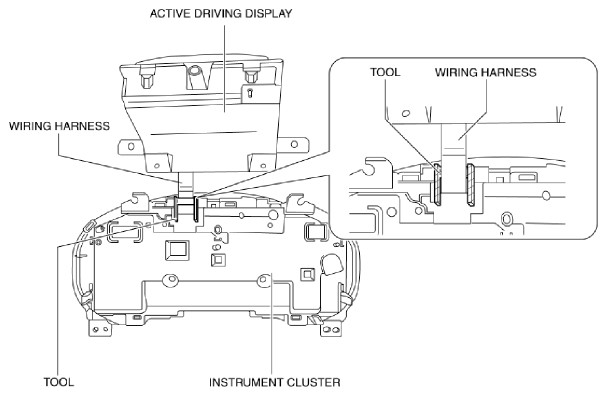

    Fig 2: Identifying Instrument Cluster, Active Driving Display, Tool And Wiring Harness
    G10988386Courtesy of MAZDA MOTORS CORP.
  5. Remove the active driving display.
  6. Install in the reverse order of removal.
