Without Active Driving Display

When replacing the instrument cluster, perform the configuration. (See INSTRUMENT CLUSTER CONFIGURATION (USING READ/WRITE FUNCTION) .)
Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
Remove the upper column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
Remove the meter hood. (See METER HOOD REMOVAL/INSTALLATION .)
Remove the screws.

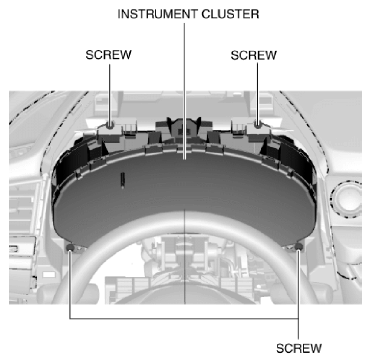

Fig 1: Identifying Instrument Cluster Screws
Courtesy of MAZDA MOTORS CORP.
Cover the light switch, wiper switch, and start stop unit using a rag to prevent scratches.

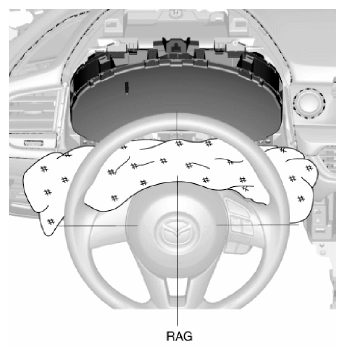

Fig 2: Covering Light Switch, Wiper Switch And Start Stop Unit Using Rag
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- When removing the instrument cluster, the instrument cluster may contact the light switch, wiper switch, or the start stop unit and the instrument cluster may be scratched. When removing the instrument cluster, cover the light switch, wiper switch, and start stop unit using a rag.
Pull the instrument cluster outward to detach it from the instrument panel pins.

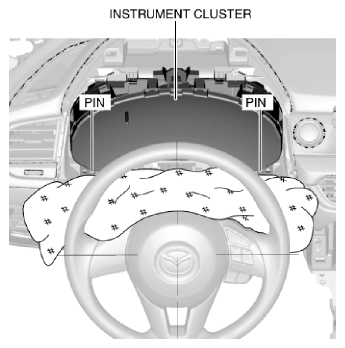

Fig 3: Identifying Instrument Cluster Pins
Courtesy of MAZDA MOTORS CORP.
Rotate the instrument cluster in the direction of the arrow shown in the figure.

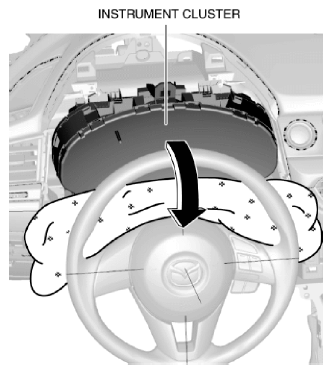

Fig 4: Rotating Instrument Cluster
Courtesy of MAZDA MOTORS CORP.
Disconnect the connector.

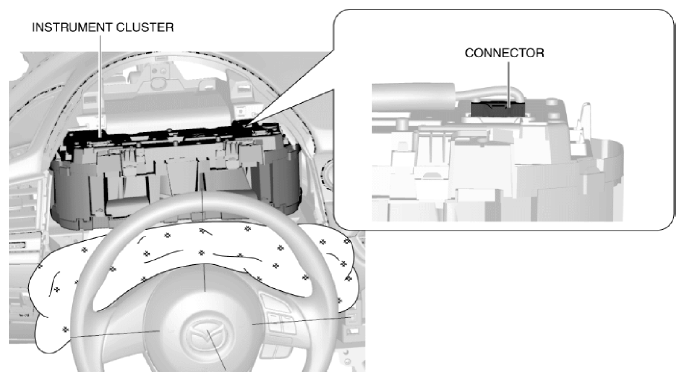

Fig 5: Identifying Instrument Cluster Connector
Courtesy of MAZDA MOTORS CORP.
Remove the instrument cluster by sliding it between the instrument panel and the steering.

Fig 6: Sliding Instrument Cluster Between Instrument Panel And Steering
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
CAUTION:
- If the instrument cluster is left for a long time with its screen facing down, grease applied to the needles may spill and the needles may not operate smoothly. When storing the instrument cluster, store it with its screen facing upward.
Fig 7: Caution - Storing Instrument Cluster Screen
Courtesy of MAZDA MOTORS CORP.
NOTE:
- If configuration cannot be performed by reading/writing of the vehicle specification information, perform the configuration using As-Built information after replacing the instrument cluster. (See INSTRUMENT CLUSTER CONFIGURATION (USING AS-BUILT DATA) .)
