Engine Front Cover Removal Note

Remove the nut shown in the figure and set the cooler hose (LO) aside.

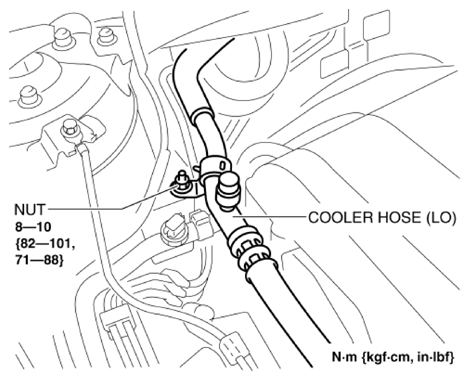

Fig 1: Identifying Cooler Hose (LO) And Nut With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove the insulator shown in the figure.

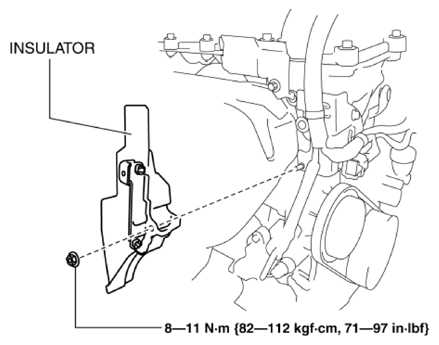

Fig 2: Identifying Insulator And Nut With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Set the ground cable and wiring harness bracket shown in the figure aside.

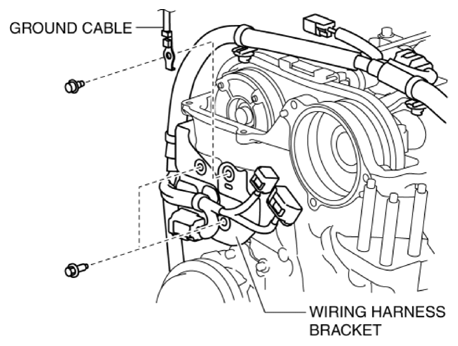

Fig 3: Identifying Ground Cable Clip And Wiring Harness Bracket
Courtesy of MAZDA MOTORS CORP.
Remove the engine front cover installation bolts.
Using a screwdriver wrapped in a cloth, peel the sealant away a little at a time, and remove the engine front cover.
CAUTION:
- Do not apply excessive force to the screwdriver. Otherwise, the engine front cover could be damaged.
- Be careful not to scratch or damage the seal surface. Otherwise, it could cause oil leakage.

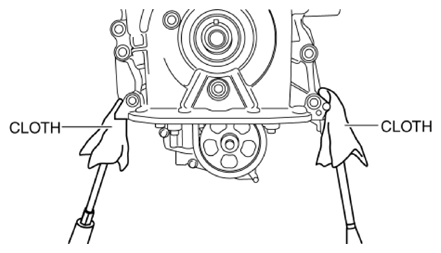

Fig 4: Peeling Sealant Using Screwdriver Wrapped In Cloth (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

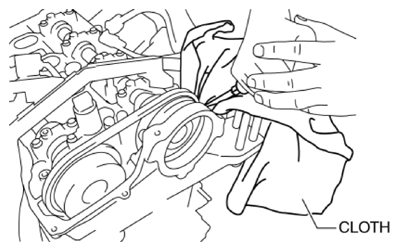

Fig 5: Peeling Sealant Using Screwdriver Wrapped In Cloth (2 Of 2)
