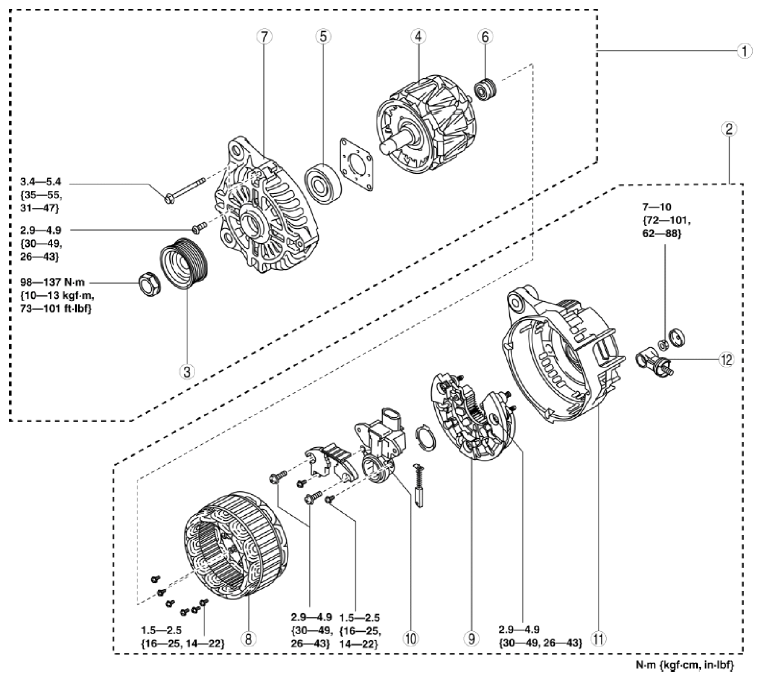

Generator Disassembly/Assembly: Notes
- Disassemble in the order indicated in the table.
- Assemble in the reverse order of disassembly.
COMPONENT DESCRIPTION
| 1 | Rotor component |
| 2 | Stator coil component |
| 3 | Pulley |
| 4 | Rotor |
| 5 | Front bearing |
| 6 | Rear bearing |
| 7 | Front cover |
| 8 | Stator coil (See Stator Coil Disassembly/Assembly Note .) |
| 9 | Rectifier |
| 10 | Regulator component |
| 11 | Rear cover |
| 12 | Terminal B component |
