Generator Inspection: Notes

CAUTION:

Do not apply direct battery positive voltage to generator terminal 2B, otherwise it could cause damage to the internal parts (power transistor) of the generator.

NOTE:

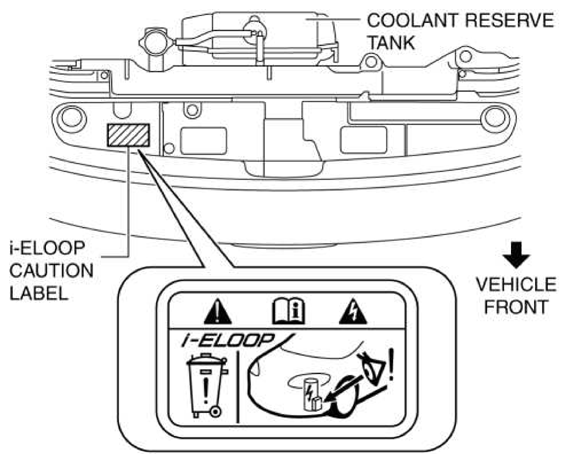

The i-ELOOP caution label is adhered to the position shown in the figure below on vehicles with i-ELOOP. When determining if a vehicle in for servicing is equipped with i-ELOOP, refer to the i-ELOOP section. (See GENERATOR INSPECTION [I-ELOOP] .)

Fig 1: Identifying I-ELOOP Caution Label To Position

G10985518

Courtesy of MAZDA MOTORS CORP.
