Condenser Removal/Installation

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
Remove the following parts:
1. Rear scuff plate (LH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
2. Rear seat cushion (LH) (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
3. Rear side seat back (LH) (See REAR SEAT BACK REMOVAL/INSTALLATION .)
4. Tire house trim (LH) (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
5. C-pillar trim (LH) (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
Disconnect the connector.

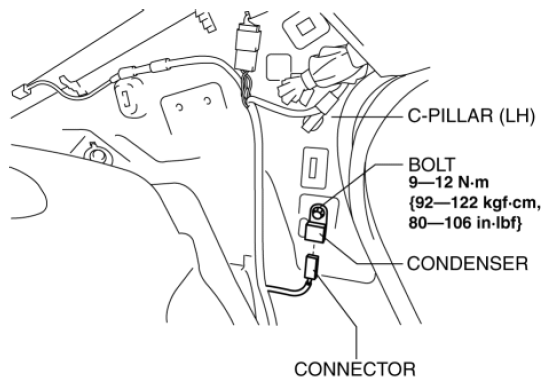

Fig 1: Identifying Condenser Connector And Bolt With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the bolt.
Remove the condenser.
Install in the reverse order of removal.
