Steering Switch Inspection

WARNING:
  1. Switch the ignition OFF (LOCK).
  2. Disconnect the negative battery cable and wait for 1 min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
  3. Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] .)
  4. Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
  5. Verify that the resistance and continuity between the steering switch terminals is as indicated in the table.

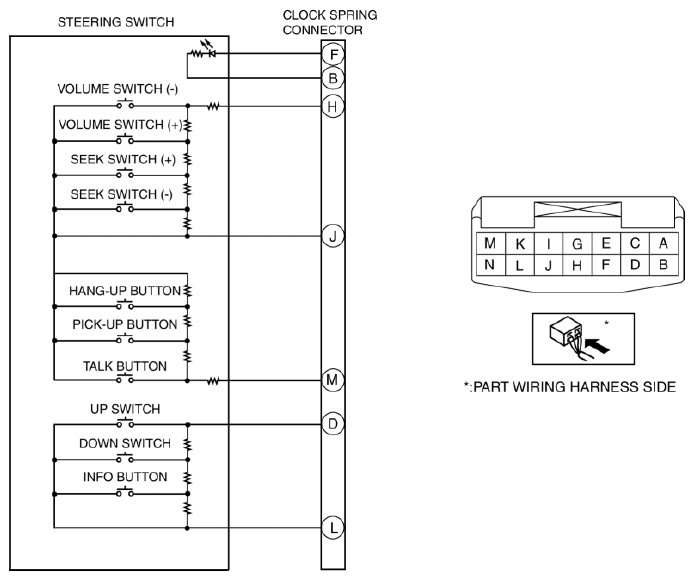

    Fig 1: Steering Switch Terminal Wiring Diagram
    G10988244Courtesy of MAZDA MOTORS CORP.

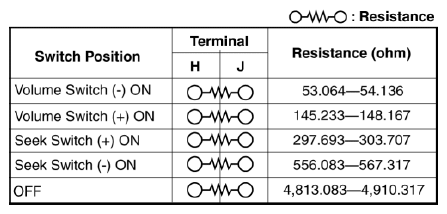

    Fig 2: Steering Switch Terminal Resistance Chart (1 Of 4)
    G10988245Courtesy of MAZDA MOTORS CORP.

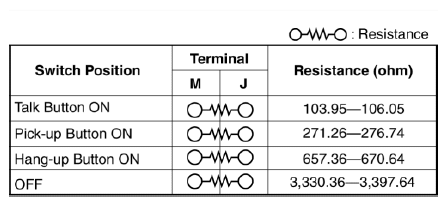

    Fig 3: Steering Switch Terminal Resistance Chart (2 Of 4)
    G10988246Courtesy of MAZDA MOTORS CORP.
    Fig 4: Steering Switch Terminal Resistance Chart (3 Of 4)
    G10988247Courtesy of MAZDA MOTORS CORP.
    Fig 5: Steering Switch Terminal Resistance Chart (4 Of 4)
    G10988248Courtesy of MAZDA MOTORS CORP.

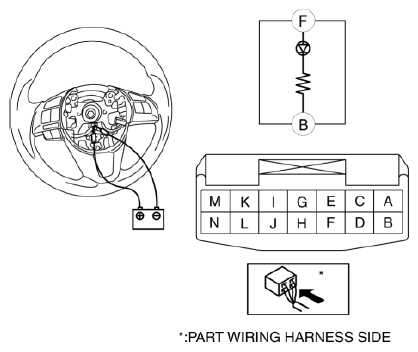

  6. Apply battery positive voltage to steering switch terminal F, and connect terminal B to ground.
    Fig 6: Applying Battery Positive Voltage To Steering Switch Terminal F
    G10988249Courtesy of MAZDA MOTORS CORP.
  7. Verify that the LED illuminates.
