Active Air Shutter Location Index

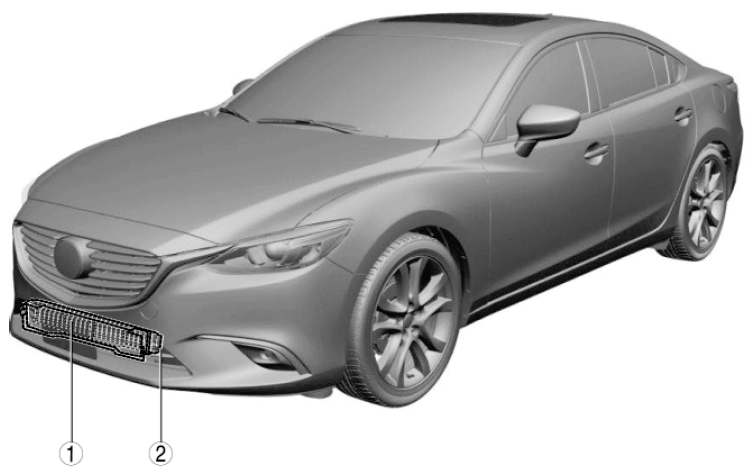

Fig 1: Active Air Shutter And Cover

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Active air shutter (See ACTIVE AIR SHUTTER REMOVAL/INSTALLATION .) (See ACTIVE AIR SHUTTER INSPECTION .)
2	Active air shutter cover (See ACTIVE AIR SHUTTER REMOVAL/INSTALLATION .)
