Console Side Panel Removal/Installation
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
- Remove the upper panel. (See UPPER PANEL REMOVAL/INSTALLATION .)

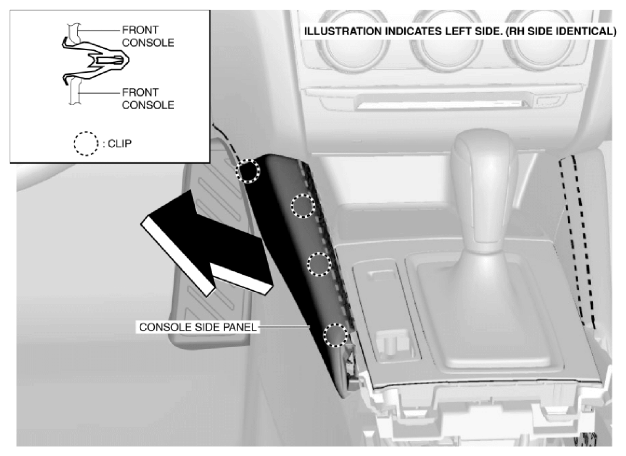

- Remove the console side panel in the direction of arrow shown in the figure while detaching clips.
- Install in the reverse order of removal.
