Lighting Systems Location Index: Exterior

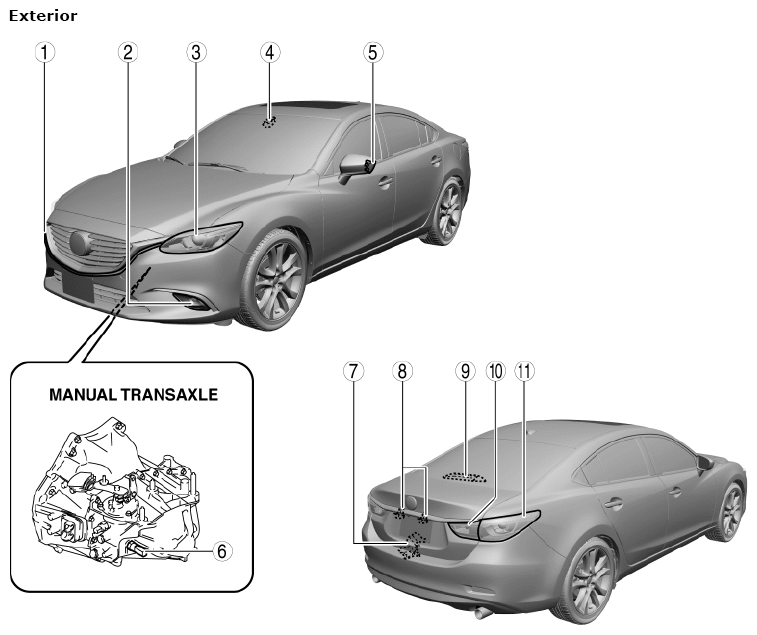

Fig 1: Exterior Lighting System Components Location

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Signature wing illumination (With signature wing illumination) (See SIGNATURE WING ILLUMINATION REMOVAL/INSTALLATION .) (See SIGNATURE WING ILLUMINATION INSPECTION .) (See SIGNATURE WING ILLUMINATION SHORT CORD REMOVAL/INSTALLATION .) (See SIGNATURE WING ILLUMINATION SHORT CORD INSPECTION .)
2	Front fog light (With front fog light) (See FRONT FOG LIGHT REMOVAL/INSTALLATION .) (See FRONT FOG LIGHT INSPECTION .) (See FRONT FOG LIGHT BULB REMOVAL/INSTALLATION .) (See FRONT FOG LIGHT AIMING .)
3	Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .) (See FRONT COMBINATION LIGHT DISASSEMBLY/ASSEMBLY .) (See HEADLIGHT BULB REMOVAL/INSTALLATION .) (See HEADLIGHT AIMING .) (See PARKING/FRONT SIDE MARKER/FRONT TURN LIGHT BULB REMOVAL/INSTALLATION [FRONT COMBINATION LIGHT (BULB TYPE)] .) (See FRONT SIDE MARKER/FRONT TURN LIGHT BULB REMOVAL/INSTALLATION [FRONT COMBINATION LIGHT (LED TYPE)] .) (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE .)
4	Auto light sensor (With auto light system) (See AUTO LIGHT SENSOR REMOVAL/INSTALLATION .) (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE .)
5	Side turn light (See SIDE TURN LIGHT REMOVAL/INSTALLATION .) (See SIDE TURN LIGHT INSPECTION .) (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE .)
6	Back-up light switch (MTX) (See BACK-UP LIGHT SWITCH INSPECTION .)
7	Auto leveling sensor (With headlight auto leveling system) (See AUTO LEVELING SENSOR REMOVAL/INSTALLATION .) (See AUTO LEVELING SENSOR INSPECTION .) (See HEADLIGHT AUTO LEVELING SYSTEM INITIALIZATION .)
8	License plate light (See LICENSE PLATE LIGHT REMOVAL/INSTALLATION .) (See LICENSE PLATE LIGHT BULB REMOVAL/INSTALLATION .)
9	High-mount brake light (See HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION .)
10	Trunk lid light (See TRUNK LID LIGHT REMOVAL/INSTALLATION .) (See BACK-UP LIGHT BULB REMOVAL/INSTALLATION .) (See TAILLIGHT BULB REMOVAL/INSTALLATION .)
11	Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION .) (See REAR TURN LIGHT BULB REMOVAL/INSTALLATION .) (See REAR SIDE MARKER LIGHT BULB REMOVAL/INSTALLATION .) (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE .)
