Front Seat Warmer Control Unit Inspection
›
System Diagram
System Diagram

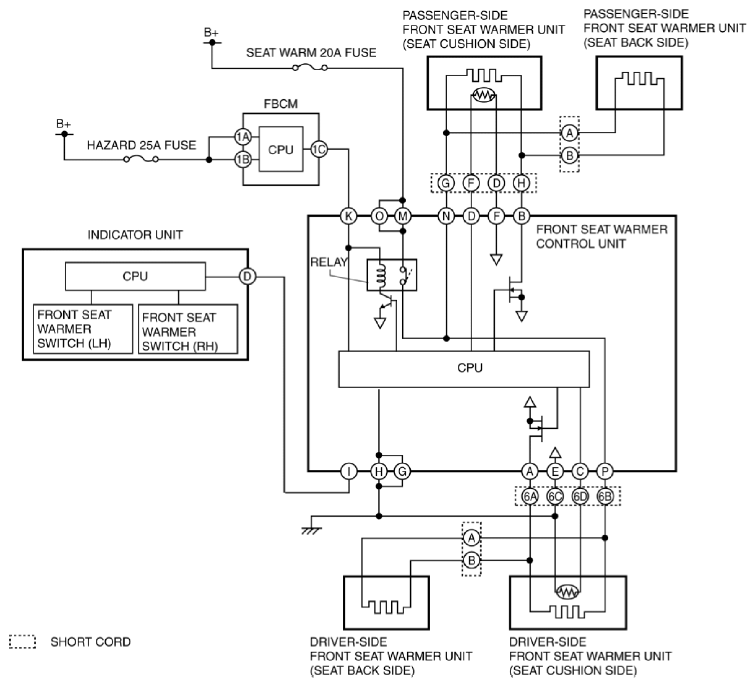

Fig 1: Front Seat Warmer Control Unit System Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
