Recliner Motor Inspection
WARNING:
- Handling a side air bag improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the service warnings/cautions in the Service Information before handling the front seat (side air bag integrated). (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) (See AIR BAG SYSTEM SERVICE WARNINGS [STANDARD DEPLOYMENT CONTROL SYSTEM] .) (See AIR BAG SYSTEM SERVICE CAUTIONS [STANDARD DEPLOYMENT CONTROL SYSTEM] .)
- Disconnect the negative battery cable and wait for 1 min or more . (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)

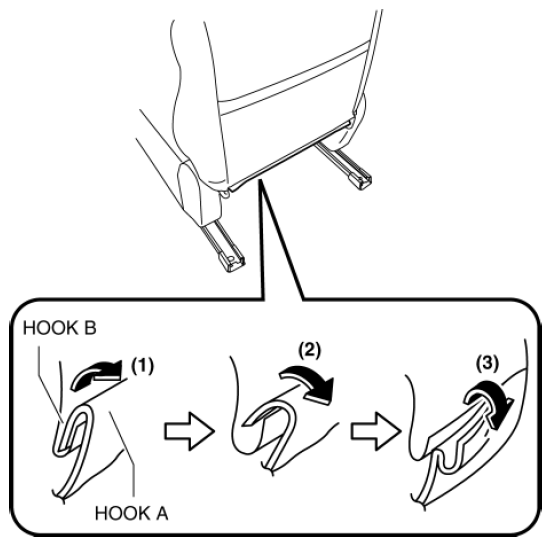

- Slide hooks A in the order of arrows (1), (2), (3) shown in the figure and disconnect them from hooks B.

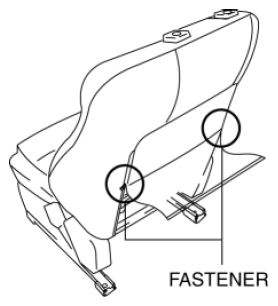

- Open fasteners.
- Disconnect the recliner motor connector.

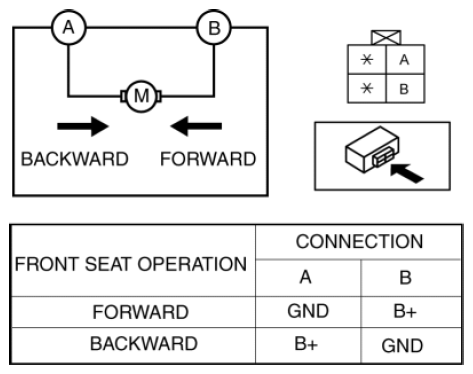

- Apply battery positive voltage to the recliner motor terminals and inspect the front seat operation.
- If not as specified, replace the front seat back frame. (See FRONT SEAT BACK FRAME REMOVAL/INSTALLATION .)
