Inspection Using an Oscilloscope (Reference)

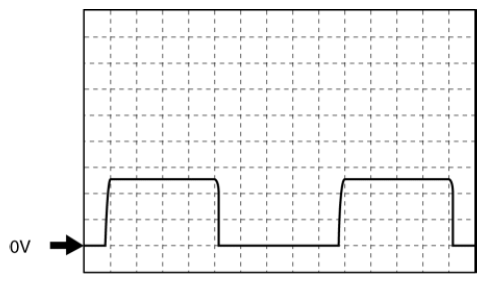

Fig 1: Power Window Subswitch Voltage Wave Pattern

Courtesy of MAZDA MOTORS CORP.

• Terminal:

  D, F(+) ↔ ground (-)

• Oscilloscope setting: 2 V/DIV (Y), 1 ms/DIV (X), DC range
