DTC P0C39-00: Capacitor Temperature Sensor System: Notes

DTC P0C39:00	Capacitor (i-ELOOP) temperature sensor system: function/circuit malfunction
DETECTION CONDITION	Any one of the following conditions is met: A condition in which the capacitor (i-ELOOP) temperature sensor voltage is less than 0.05 V (less than -50 °C {-58°F})  continues for 1 s  . A condition in which the capacitor (i-ELOOP) temperature sensor voltage is 4.95 V or more (90 °C {194°F} or more)  continues for 1 s  .
FAIL-SAFE FUNCTION	Not applicable

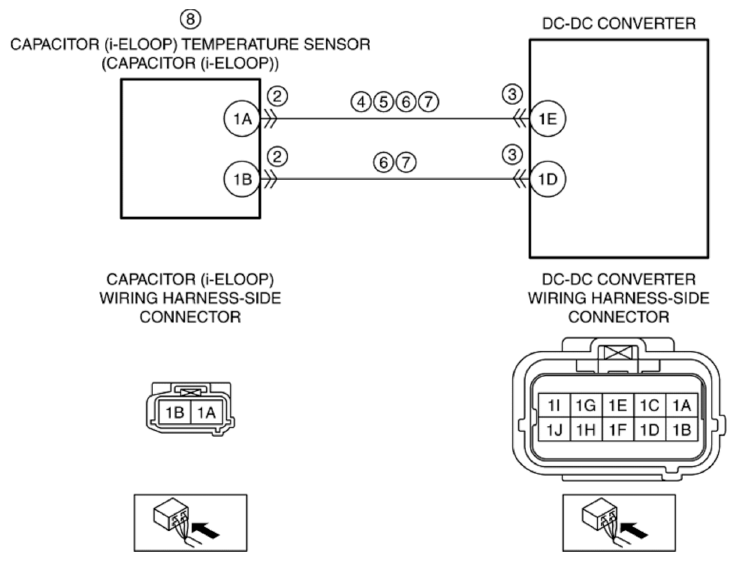

POSSIBLE CAUSE	Capacitor (i-ELOOP) connector or terminals malfunction DC-DC converter (i-ELOOP) connector or terminals malfunction Short to ground in wiring harness between capacitor (i-ELOOP) terminal 1A and DC-DC converter (i-ELOOP) terminal 1E Short to power supply in wiring harness between capacitor (i-ELOOP) terminal 1A and DC-DC converter (i-ELOOP) terminal 1E Capacitor (i-ELOOP) temperature sensor signal circuit and ground circuit are shorted to each other Open circuit in wiring harness between the following terminals: Capacitor (i-ELOOP) terminal 1A-DC-DC converter (i-ELOOP) terminal 1E Capacitor (i-ELOOP) terminal 1B-DC-DC converter (i-ELOOP) terminal 1D Capacitor (i-ELOOP) temperature sensor malfunction DC-DC converter (i-ELOOP) malfunction
