Starting System Location Index

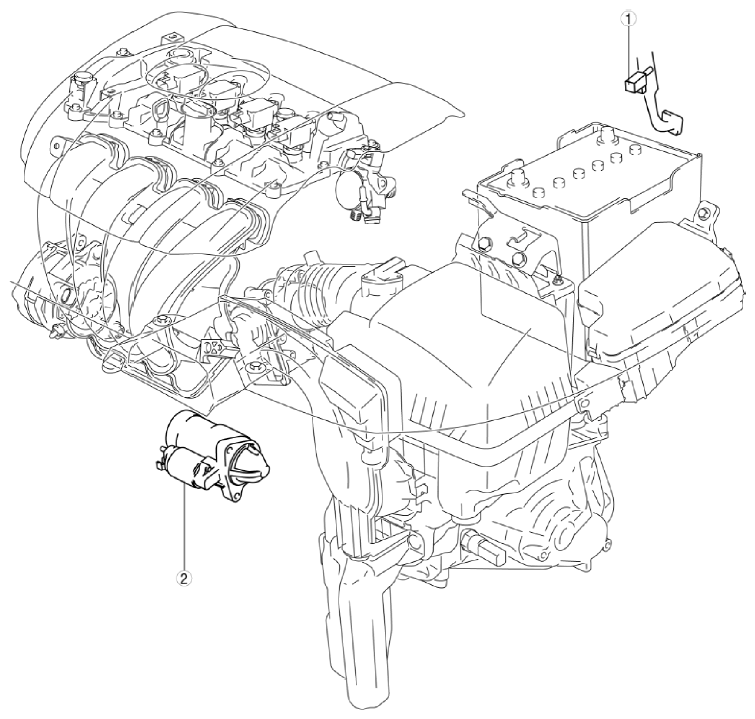

Fig 1: Starting System Component Location

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Starter interlock switch (MTX) (See STARTER INTERLOCK SWITCH INSPECTION [SKYACTIV-G 2.5] .)
2	Starter (See STARTER REMOVAL/INSTALLATION [SKYACTIV-G 2.5] .) (See STARTER INSPECTION [SKYACTIV-G 2.5] .) (See STARTER DISASSEMBLY/ASSEMBLY [SKYACTIV-G 2.5] .)
